20 Ton Overhead Crane Solutions
Ahora tienes la oportunidad de seleccionar la solución adecuada de grúa aérea de 20 toneladas para levantar o mover de manera eficiente y segura cargas pesadas y equipos en tus sitios de construcción, minería u otros proyectos industriales.
20 Ton Overhead Crane Solutions: 3 Ultimate Choices!
Are you seeking an efficient 20-ton overhead crane solution for your outdoor warehouse, railroad, or construction site? Here are our 3 guaranteed options that deliver!
“`No changes were made to the HTML content.

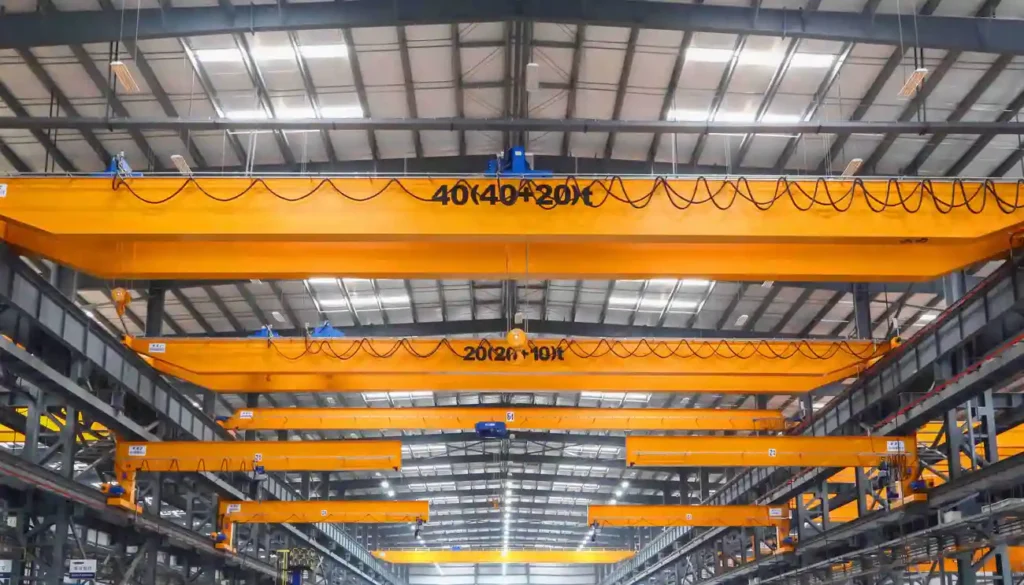

Light 20 Ton Overhead Crane
Our Light overhead 20-ton crane is designed to handle a wide range of heavy load-lifting at your light construction and industrial project sites.
It includes a gearbox, a motor, and a frequency converter for smooth, precise, and efficient load control.
The 20-ton double-beam overhead crane can span up to 49 meters with an indoor industrial lifting height of 30 to 40 meters.
“`Winch 20 Ton Overhead Crane
Does your construction or industrial project involve frequent lifting and pulling of loads up to 20 tons? Our Winch Overhead 20-ton crane is the perfect solution for your project needs.
The crane features a bridge design for enhanced lifting power. Based on your project needs, we can customize the crane to handle load capacities ranging from 5 to 360 tons!
“`20 Ton Gantry Crane
Do you desire an outdoor 20-ton crane for lifting and lowering heavy loads at your construction site, manufacturing space, railroads, shipyards, or our outdoor warehouse?
Our certified high-efficiency 20-ton gantry Crane provides the lifting power you need and allows for customization to suit your load-handling space and lifting height.
“`Light 20 Ton Overhead Crane Solution
Specifications
Description | Detail |
Core Components | Gearbox, Motor, Frequency Converter |
Place of Origin | Henan, China |
Warranty | 1 Year |
Weight | 5000 kg |
Crane Feature | Bridge Crane |
Lifting Load | 5 to 100 Ton |
Span Range | 0-49M |
Product Name | Light Double Beam Overhead Crane |
Usage | Construction Hoist |
Max Lifting Height | 30M/40M |
Lifting Speed | 0.4-16m/min |
Operating Speed | 5-90m/min |
Cross Traveling | 3-30m/min |
Hoist | European-style electric wire rope hoist |
Control Options | Wireless remote control, Cab operator control, handheld control |
Certifications | CE, ISO |


Key Benefits and Specifications
- Has a double beam for a high-lifting capacity of up to 20 tons with a lifting height range of 30 to 40 meters.
- Powered by energy-efficient motors.
- Equipped with a variable frequency drive (frequency converter) for safe control of lifting operations.
- It has a span of up to 49 meters and allows for customization to suit your project site.
- Ensures safety and high efficiency with its three remote control options.
- Allows customization to suit your other load-lifting needs from 5 to 100 tons!
- The crane comes with a European-style electric wire rope hoist for enhanced energy efficiency, precise braking, speed control, and lifting flexibility.
- Demands low maintenance and, therefore, serves you better for longer.
- Conforms to both CE and ISO certification standards.
- Has a 1-year warranty with the necessary support services.
Winch Overhead 20 Ton Crane
Specifications
Description | Detail |
Core Components | Gearbox, Motor, Frequency Converter |
Place of Origin | Henan, China |
Warranty | 1 Year |
Weight | 5000 kg |
Crane Feature | Bridge Crane |
Lifting Load | 5 to 360 Ton |
Span Range | 0-49M |
Product Name | Winch Double Beam Overhead Crane |
Usage | Construction Hoist |
Max Lifting Height | 30M/40M |
Lifting Speed | 0.4-20m/min |
Long Operating | 5-90m/min |
Cross Traveling | 4-40m/min |
Hoist | European-style electric wire rope hoist |
Control Options | Wireless remote control, cab control, handheld control |
Certifications | CE, ISO |


Key Benefits and Specifications
- Robust double Beam design for stable and safe lifting and pulling of up to 20 tons within your construction site
- Allows for customization of its load-lifting capacity to suit your project requirements
- Designed with different lifting and cross-traveling speeds to achieve the desired performance efficiency and productivity
- Allows for wireless, handheld device, and cabin operator control options for enhanced safety and performance efficiency.
- Designed with different span ranges to suit your heavy-load handling space
- Has a lifting height range of 30 to 40 meters for safe and stable indoor handling of heavy loads.
- Equipped with a European-style electric wire rope hoist for efficient and compact load-lifting and pulling operations.
20 Ton Gantry Crane
Specifications
Description | Detail |
Lifting Capacity | Maximum 320 tons |
Span | Maximum 50 meters |
Running Speed of Large Vehicle | 3-30 m/min |
Trolley Running Speed | 4-40 m/min |
Lifting Speed | 0.4-16 m/min |
Key Benefits and Specifications
- It is designed to suit your outdoor lifting of heavy loads of up to 20 tons with an option for customization to handle up to 360 tons!
- It has a span of up to 50 meters, which allows enough space for the safe handling of heavy loads
- The Versatile load-lifting solution is suitable for your construction site, outdoor warehouse load-handling, manufacturing facility, and shipyard projects.
- Boast a trolley speed range of 4-40 m/min maximum operation safety and desired productivity.
- Controllable lifting and lowering speed to achieve your desired load-handling precision.


Where Do You Require 20 Ton Overhead Crane Solutions?
Some of the heavy-load handling areas where our certified solutions for 20 Ton Cranes may be needed to successfully drive your projects are:
- Construction Industry: 20-ton cranes are suitable for handling light construction materials or equipment within construction sites.
- Marine Industry: In the Shipyards to facilitate ship repairs or shipbuilding projects
- Ports Operations: At the ports, 20-ton cranes can facilitate your efficient loading and offloading of light containers
- Warehouses and Goods: If you have large and busy warehouses or distribution centers, 20-ton overhead cranes come in handy in handling materials for storage or safe offloading of materials or loads.
- Mining Industry: For lifting heavy mining machinery, equipment, or materials
- Automotive Industry: For large vehicle assembly plants, 20-ton cranes facilitate the safe lifting and movement of assembly machines, engines, and engine components.
- Power and Energy Production Sector: For lifting and lowering of heavy power-production equipment during installation or servicing.
- Manufacturing or Production Facility: The 20-ton crane facilitates your effortless movement of machines, raw materials, and manufactured products within a production or manufacturing facility.
